Triton X-1-Monowing complete set
THE WORLD’S FIRST PRODUCTION WING MONOFOIL |
X-1 foil set
Wind range: 10-25+ knotsMax speed: >35kmphWeight: 3.65kg (75cm) and <3.0kg for the carbon mast
4 M8 x 40mm screws assemble the complete foil.Top and bottom sacrificial anodes to minimize corrosion.Proprietary low drag mast profile.Patent pending design from Triton’s proven designers.65, 75cm and 85cm ALU mast options
optional 72, 78, 85, or 93cm carbon NOLIMITZ V2 mast
mast base
Standard 140mm x 90mm track bolt spacing.Mast forward design to improve performance on non-Triton wingboards.
Bottom mounted sacrificial anode to reduce galvanic corrosion with carbon wingboards.
mast collar
Force distributing mast collar that displaces loads over a wider surface area.
Rear mounted set screw eliminates any potential gaps.
Massively increased wing mounting surface area.

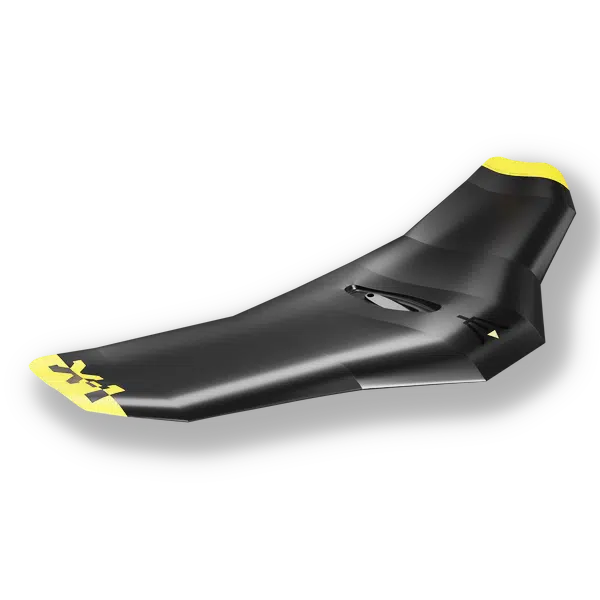

X-1 wing
Patent pending design for winging.
Weight reducing, performance enhancing prepreg carbon construction.
1885cm² in area and 80cm span that rides more like a 1100-1400cm² wing.
High wind loving design that’s virtually impossible to overpower.
FREESTYLE / FREERIDE / WAVE / CROSSOVER
Triton’s X-1 delivers exceptional neutral stance performance for riders of all levels. Enjoy its ultra compact, safe, travel-friendly design, and state-of-the-art engineering. Experience the X-1’s unmatched agility and neutral stance at high speed. Wing it, kite it, wake foil it, efoil, or prone it. Or do it all!
Tumbling in waves or botching an aerial is no fun when you’re winging. But when you do, you’re going to wish you were on the stabless X-1. The world’s first monofoil purpose built for winging is the product of cutting edge engineering and exhaustive iterative R&D. It delivers excellent low-end power and impressive top end speeds – a one size fits all monofoil. Its patent pending dihedral wing shape features confidence inspiring pitch, roll, and yaw stability while delivering unmatched agility and superior control in disturbed water. Get on an X-1 and you’ll be gybing, tacking, and freestylin’ like a pro in no time!
One big advantage the X-1 has over foils with tail wings is its neutral stance at speed. Foils with fuselages create stability with a tail wing that generates negative lift that offsets the positive lift from the front wing. The faster you go (especially when riding down a wave!) the sharply increasing negative lift forces you to compensate by shifting your weight forward and onto your front foot. Because the X-1 does not have a tail wing there is no increasing front foot pressure and you enjoy a neutral stance regardless of foil speed.
SPECS
Our proprietary mast shape doesn’t flex or twist. Lay it on its side and step on it. It barely budges. And yet, it’s (mast, base, and bolts) only 400g grams heavier than our super lightweight T1 mast. Now, push a wingtip forward or back on a traditional foil and you’ll see (and feel) the mast twist. Try this with the X-1 and you’ll notice a massive difference in torsional rigidity that you’ll immediately notice when initiating turns.
Our innovative mast-to-wing connection system seriously improves load transfers between our mast and monowing making it superior to flat fuselage-to-wing connections. The key is our load-distributing mast collar that wedges itself against our 6061 T6 mast and carbon wing. A rear-mounted set screw forces the collar forward removing any play between the mast and collar. Lateral forces are no longer focused on a small, flat wing connection but instead on a much larger, load-distributing, trapezoid connection.
We also added two replaceable sacrificial anodes (one’s never enough!) to prevent galvanic corrosion between your carbon board and the aluminum mast plate and between the mast and carbon monowing. But this does not mean you don’t have rinse your foil with fresh water after each use!
So, go ahead and enjoy the X-1’s next level anti-ventilation, four screw simplicity, canopy-saving design, and much much more. Because we’re just getting started.
X1. Performance. Simplicity. Innovation.
Price inc shipping Australia wide
Absolutely, here’s a detailed description of the Triton X-1-Monowing complete set, highlighting its features and benefits along with the transitional cues:
The Triton X-1-Monowing complete set is a revolutionary advancement in sporting equipment. To begin with, its cutting-edge design seamlessly integrates aerospace-grade aluminum with carbon fiber, delivering unparalleled strength and durability. Transitioning from conventional materials to this high-tech combination ensures top-notch performance and extended product life.
Moreover, the Monowing set boasts an ergonomic design, featuring precision-engineered components. The transition to this sleek design not only enhances the aesthetics but also optimizes functionality. From the comfort of the grip to the aerodynamics of the frame, every aspect is meticulously crafted to elevate the user experience.
Triton X-1-Monowing complete set
Transitioning to the technical specifications, this complete set includes an array of accessories tailored for diverse sporting needs. The Monowing set comprises interchangeable modules, enabling effortless adaptation for various sports activities. Seamlessly shift from cycling to rollerblading or even skateboarding with a swift, tool-free transition—a hallmark feature that sets this set apart.
Furthermore, the Monowing set isn’t just about versatility; it’s designed for uncompromised safety. Transitioning between activities is smooth due to its advanced locking mechanism, ensuring stability and minimizing the risk of accidents or equipment malfunctions.
The inclusion of state-of-the-art technology marks another crucial transition in sporting gear evolution. With integrated sensors and connectivity options, users can track performance metrics in real-time, enabling data-driven improvements in their training regimen.
In addition, the Triton X-1-Monowing complete set’s commitment to sustainability is a significant transition in the industry. By utilizing eco-friendly materials and employing efficient manufacturing processes, this set reduces its environmental footprint without compromising on quality or performance.
In conclusion, the Triton X-1-Monowing complete set transcends traditional sporting gear by seamlessly transitioning between versatility, safety, technology, and sustainability. Its innovative design and multifunctional capabilities offer a glimpse into the future of sports equipment, making it an indispensable choice for enthusiasts and professionals alike.
if you need to know more click here => https://efoilgc.com and for accessories click here =>https://estore.efoilgc.com/product-category/accessories/
